LiteLLM Proxy - 1K RPS Load test on locust

Tutorial on how to get to 1K+ RPS with LiteLLM Proxy on locust

Pre-Testing Checklist​

Use this config for testing:

Note: we're currently migrating to aiohttp which has 10x higher throughput. We recommend using the aiohttp_openai/ provider for load testing.

model_list:
  - model_name: "fake-openai-endpoint"
    litellm_params:
      model: aiohttp_openai/any
      api_base: https://your-fake-openai-endpoint.com/chat/completions
      api_key: "test"

Load Test - Fake OpenAI Endpoint​

Expected Performance​

MetricValue
Requests per Second1174+
Median Response Time96ms
Average Response Time142.18ms

Run Test​

  1. Add fake-openai-endpoint to your proxy config.yaml and start your litellm proxy litellm provides a hosted fake-openai-endpoint you can load test against
model_list:
  - model_name: fake-openai-endpoint
    litellm_params:
      model: aiohttp_openai/fake
      api_key: fake-key
      api_base: https://exampleopenaiendpoint-production.up.railway.app/

litellm_settings:
  callbacks: ["prometheus"] # Enterprise LiteLLM Only - use prometheus to get metrics on your load test

  1. pip install locust

  2. Create a file called locustfile.py on your local machine. Copy the contents from the litellm load test located here

  3. Start locust Run locust in the same directory as your locustfile.py from step 2

    locust -f locustfile.py --processes 4

  4. Run Load test on locust

    Head to the locust UI on http://0.0.0.0:8089

    Set Users=1000, Ramp Up Users=1000, Host=Base URL of your LiteLLM Proxy

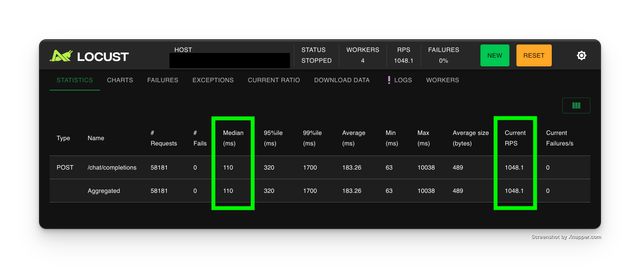

  5. Expected results

Load test - Endpoints with Rate Limits​

Run a load test on 2 LLM deployments each with 10K RPM Quota. Expect to see ~20K RPM

Expected Performance​

  • We expect to see 20,000+ successful responses in 1 minute
  • The remaining requests fail because the endpoint exceeds it's 10K RPM quota limit - from the LLM API provider
MetricValue
Successful Responses in 1 minute20,000+
Requests per Second~1170+
Median Response Time70ms
Average Response Time640.18ms

Run Test​

  1. Add 2 gemini-vision deployments on your config.yaml. Each deployment can handle 10K RPM. (We setup a fake endpoint with a rate limit of 1000 RPM on the /v1/projects/bad-adroit-crow route below )
info

All requests with model="gemini-vision" will be load balanced equally across the 2 deployments.

model_list:
  - model_name: gemini-vision
    litellm_params:
      model: vertex_ai/gemini-1.0-pro-vision-001
      api_base: https://exampleopenaiendpoint-production.up.railway.app/v1/projects/bad-adroit-crow-413218/locations/us-central1/publishers/google/models/gemini-1.0-pro-vision-001
      vertex_project: "adroit-crow-413218"
      vertex_location: "us-central1"
      vertex_credentials: /etc/secrets/adroit_crow.json
  - model_name: gemini-vision
    litellm_params:
      model: vertex_ai/gemini-1.0-pro-vision-001
      api_base: https://exampleopenaiendpoint-production-c715.up.railway.app/v1/projects/bad-adroit-crow-413218/locations/us-central1/publishers/google/models/gemini-1.0-pro-vision-001
      vertex_project: "adroit-crow-413218"
      vertex_location: "us-central1"
      vertex_credentials: /etc/secrets/adroit_crow.json

litellm_settings:
  callbacks: ["prometheus"] # Enterprise LiteLLM Only - use prometheus to get metrics on your load test

  1. pip install locust

  2. Create a file called locustfile.py on your local machine. Copy the contents from the litellm load test located here

  3. Start locust Run locust in the same directory as your locustfile.py from step 2

    locust -f locustfile.py --processes 4 -t 60

  4. Run Load test on locust

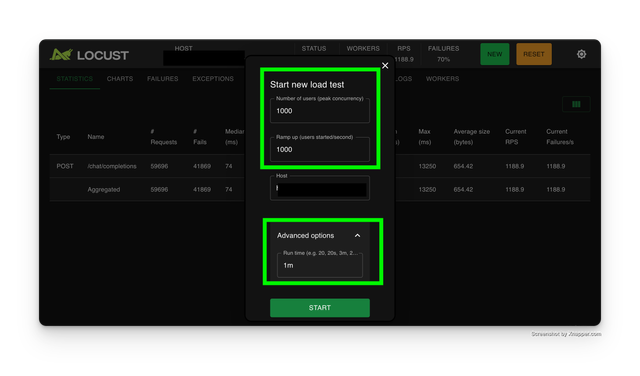

    Head to the locust UI on http://0.0.0.0:8089 and use the following settings

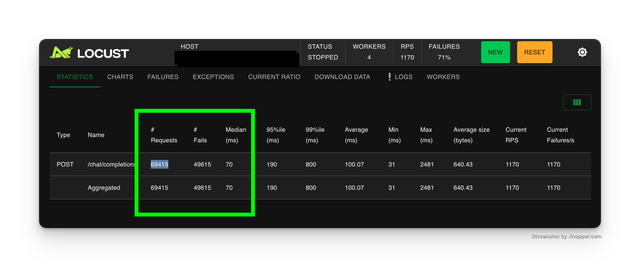

  5. Expected results

    • Successful responses in 1 minute = 19,800 = (69415 - 49615)
    • Requests per second = 1170
    • Median response time = 70ms
    • Average response time = 640ms

Prometheus Metrics for debugging load tests​

Use the following prometheus metrics to debug your load tests / failures

Metric NameDescription
litellm_deployment_failure_responsesTotal number of failed LLM API calls for a specific LLM deployment. Labels: "requested_model", "litellm_model_name", "model_id", "api_base", "api_provider", "hashed_api_key", "api_key_alias", "team", "team_alias", "exception_status", "exception_class"
litellm_deployment_cooled_downNumber of times a deployment has been cooled down by LiteLLM load balancing logic. Labels: "litellm_model_name", "model_id", "api_base", "api_provider", "exception_status"

Machine Specifications for Running Locust​

MetricValue
locust --processes 44
vCPUs on Load Testing Machine2.0 vCPUs
Memory on Load Testing Machine450 MB
Replicas of Load Testing Machine1

Machine Specifications for Running LiteLLM Proxy​

👉 Number of Replicas of LiteLLM Proxy=4 for getting 1K+ RPS

ServiceSpecCPUsMemoryArchitectureVersion
Servert2.large.2vCPUs8GBx86

Locust file used for testing​

import os
import uuid
from locust import HttpUser, task, between

class MyUser(HttpUser):
    wait_time = between(0.5, 1)  # Random wait time between requests

    @task(100)
    def litellm_completion(self):
        # no cache hits with this
        payload = {
            "model": "fake-openai-endpoint",
            "messages": [{"role": "user", "content": f"{uuid.uuid4()} This is a test there will be no cache hits and we'll fill up the context" * 150 }],
            "user": "my-new-end-user-1"
        }
        response = self.client.post("chat/completions", json=payload)
        if response.status_code != 200:
            # log the errors in error.txt
            with open("error.txt", "a") as error_log:
                error_log.write(response.text + "\n")



    def on_start(self):
        self.api_key = os.getenv('API_KEY', 'sk-1234')
        self.client.headers.update({'Authorization': f'Bearer {self.api_key}'})
